Industrial-Grade
Extraction Facility
Our Chuxiong, Yunnan facility is equipped with extraction tanks, chromatography columns, concentrators, and analytical systems — supporting CBD raw material production.
Facility Scale
Chuxiong, Yunnan
- Extraction Tanks
- 20
- Chromatography Columns
- 26
- Concentrators
- 10
- In-house Analytics
- HPLC
6 m³ multi-function
Gradient elution
2 000 L single/double-effect
Cannabinoid profiling
Facility Overview
Equipment Configuration
Extraction
20 Extraction Tanks
Chromatography
26 Chromatography Columns
Concentration
10 Concentrators
Analytical
HPLC Analytical System
Automation
Explosion-Proof Control System
Recovery
Solvent Recovery & Storage
Equipment Showcase
Precision-Engineered at Every Stage
Model: ×20 Sets
6m³ Multi-Function Extraction Tanks
Twenty industrial-scale 6m³ multi-function extraction tanks form the core of our extraction line, enabling high-volume processing of hemp biomass with precise temperature and solvent control.
Model: ×26 Columns

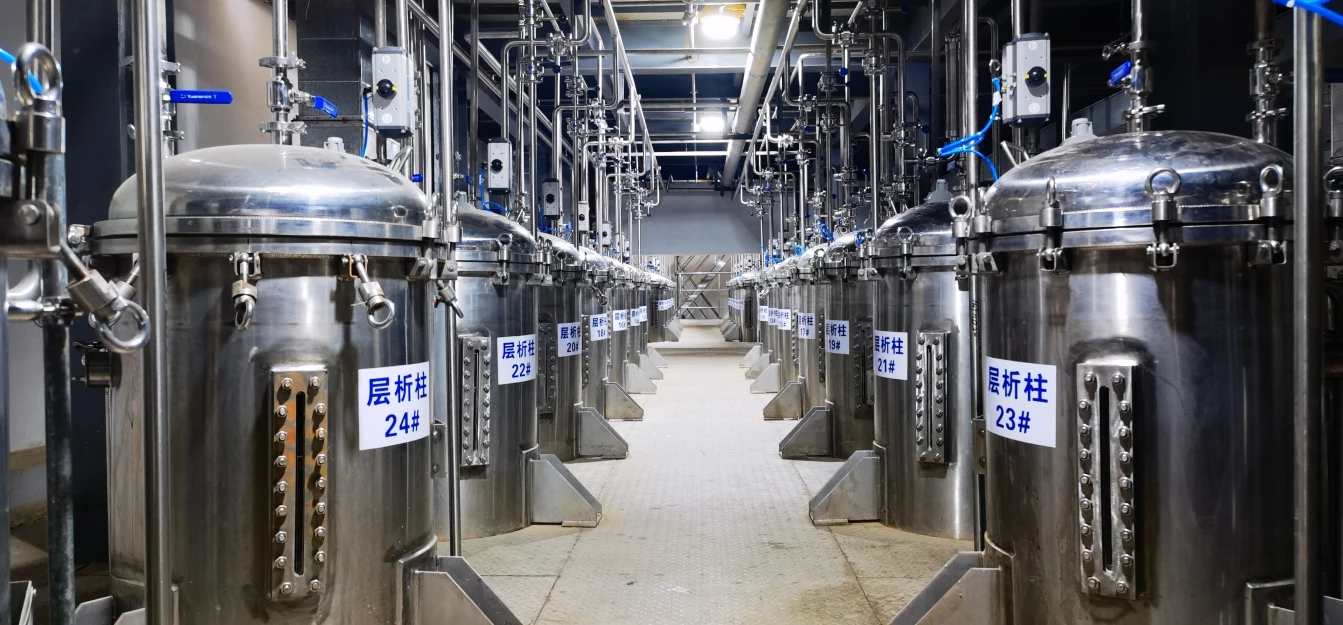

Chromatography Columns
A bank of 26 industrial chromatography columns provides large-scale cannabinoid separation and purification, achieving high-purity CBD isolate through precise gradient elution.
Model: ×10 Sets

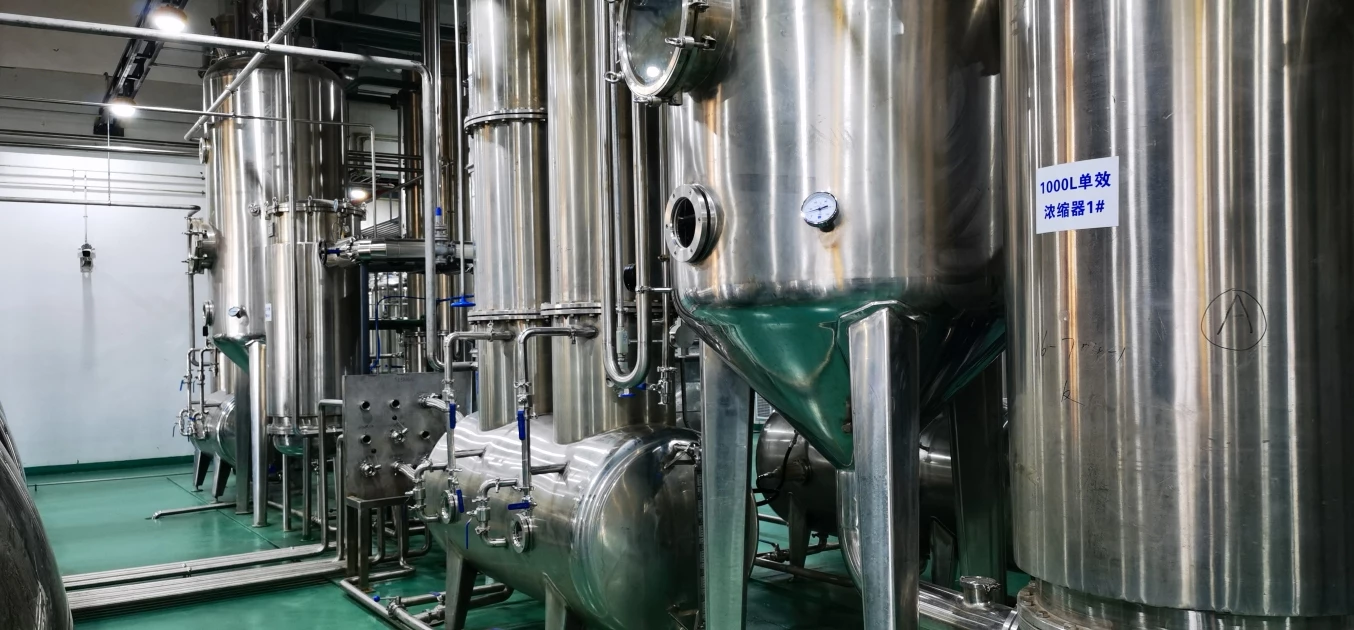

2000L Single/Double-Effect Concentrators
Ten 2000L single and double-effect concentrators efficiently reduce solvent volume and concentrate extract streams under vacuum, minimizing thermal degradation of active compounds.
Model: ×2 Sets
1000-Type Solvent Recovery Tower
Two 1000-type solvent recovery towers reclaim and recycle ethanol used in the extraction process, reducing operational costs and environmental impact while maintaining solvent purity.
Model: ×10 Sets
5m³ Ethanol Recovery Storage Tanks
Ten 5m³ storage tanks provide safe, explosion-proof containment for recovered ethanol, ensuring continuous solvent supply to the extraction line with full safety compliance.
Model: —
HPLC Analytical System
In-house HPLC analytical system provides precise cannabinoid profiling and potency analysis, ensuring every batch meets strict quality specifications before release.
Model: —
Explosion-Proof Automation Control System
An explosion-proof automation control system monitors and manages the entire production line in real time, ensuring safe operation in solvent-rich environments.
Model: Integrated
Automatic Residue Discharge System
The automatic residue discharge system removes spent biomass from extraction tanks without manual intervention, improving throughput and maintaining cleanroom conditions throughout production.
Full Specifications
Equipment Overview Table
| Equipment Name | Model Range | Process Function | Notes |
|---|---|---|---|
| 6m³ Multi-Function Extraction Tanks | ×20 Sets | Multi-Function Extraction | — |
| Chromatography Columns | ×26 Columns | Separation & Purification | — |
| 2000L Single/Double-Effect Concentrators | ×10 Sets | Extract Concentration | — |
| 1000-Type Solvent Recovery Tower | ×2 Sets | Solvent Recovery & Recycling | — |
| 5m³ Ethanol Recovery Storage Tanks | ×10 Sets | Ethanol Recovery Storage | — |
| HPLC Analytical System | — | Quality Control Analysis | — |
| Automation Control | — | Process Monitoring & Control | — |
| Automatic Residue Discharge System | Integrated | Automatic Slag Removal | — |
